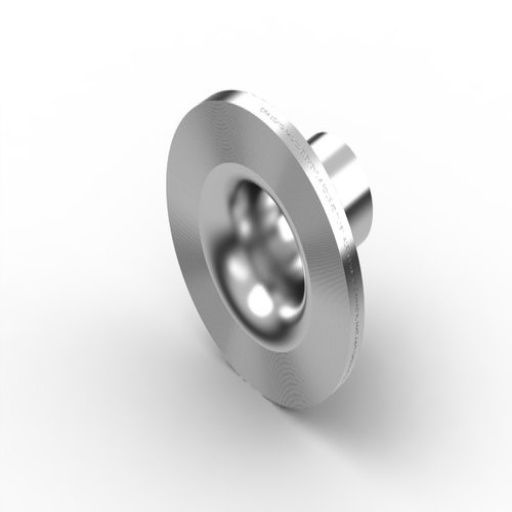

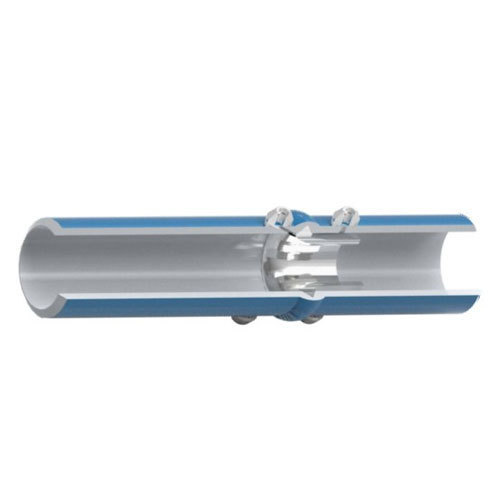

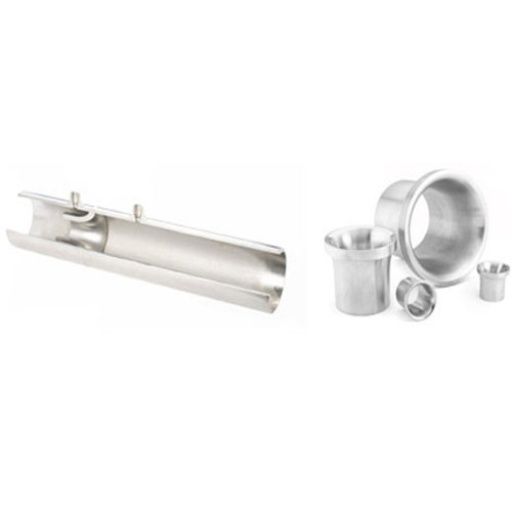

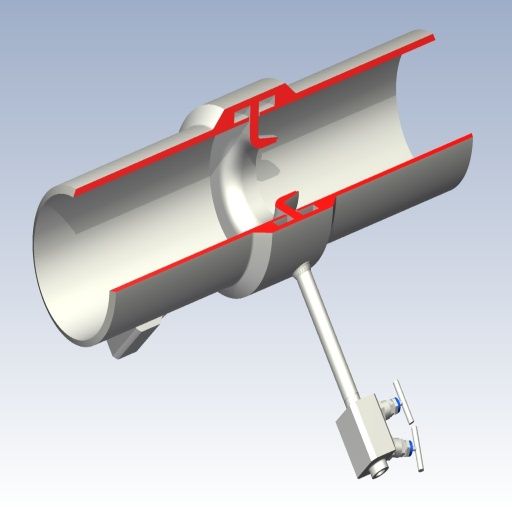

ISA Nozzle

ISA Nozzle is a flow measurement device which used for measurement of high-velocity flow, such as high-pressure steam. It can also be used with other fluids such as water, air or other gases.The typical profile of this device offers a smooth passage to the fluid which leads to the lesser pressure drop and thus more efficiency.

The rounded profile is particularly useful when the steam contains particles which damage the edges of the flow element which doesn”t happen due to the smooth profile. Thus the product life is increased.The profile of this type of nozzle is formed with the intersection of 2 circles. This gives an estimated uncertainty of 0.8% to 1.2%, depending on the beta ratio.

We ”Fabri-tek Equipments Private Limited” are well- renowned Manufacturer of Primary Flow Elements, DSH/PRDS ,Process Equipments,Pressure vessel,process piping & custom fabrication. These products are manufactured under our skilled and diligent professionals who have immense expertise in their associated domain by making use of premium quality raw material and ultra-modern methodology in order to assure their excellent quality.

Features:

• Smooth profile and rigid structure makes the assembly extremely stable.
• Free from leakage (when provided in welding type assembly)..
• Zero maintenance since no moving parts.
• Less straight lengths requirement.
