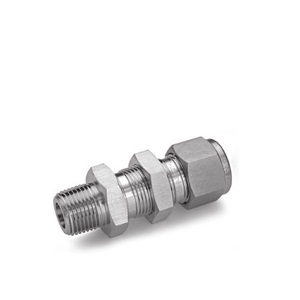

BULKHEAD MALE CONNECTOR
Metric Tubes

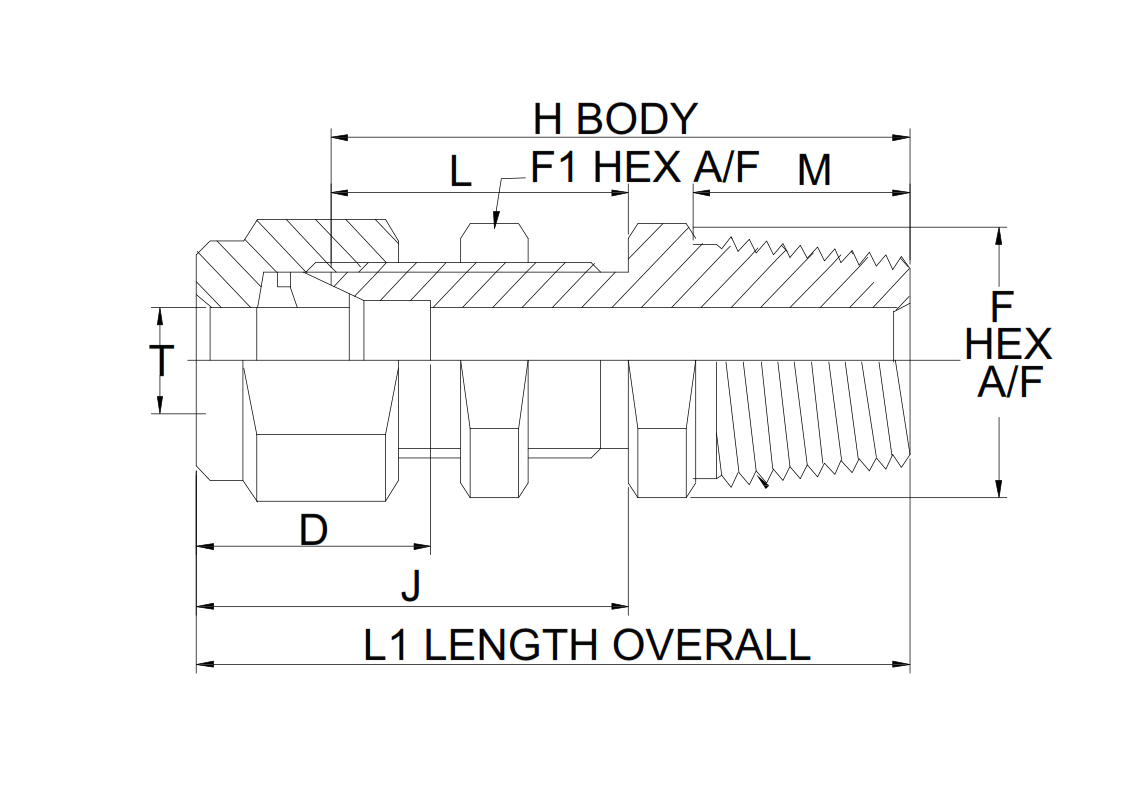

| Part No. | Tube OD | NPT Size | Dimensions | ||||||||
| M | D | F | F1 | H | J | L | L1 | PANEL HOLE | |||
| 2-N-BMC-6M | 6 | 1/8 | 9.65 | 15.24 | 11.00 | 11.00 | 42.03 | 33.27 | 25.90 | 49.53 | 12.00 |
| 4-N-BMC-6M | 1/4 | 14.22 | 15.24 | 14.00 | 14.00 | 45.97 | 33.53 | 26.16 | 53.34 | 12.00 | |
| 8-N-BMC-12M | 12 | 1/2 | 19.05 | 22.83 | 22.00 | 22.00 | 57.91 | 41.91 | 31.75 | 68.07 | 19.00 |
