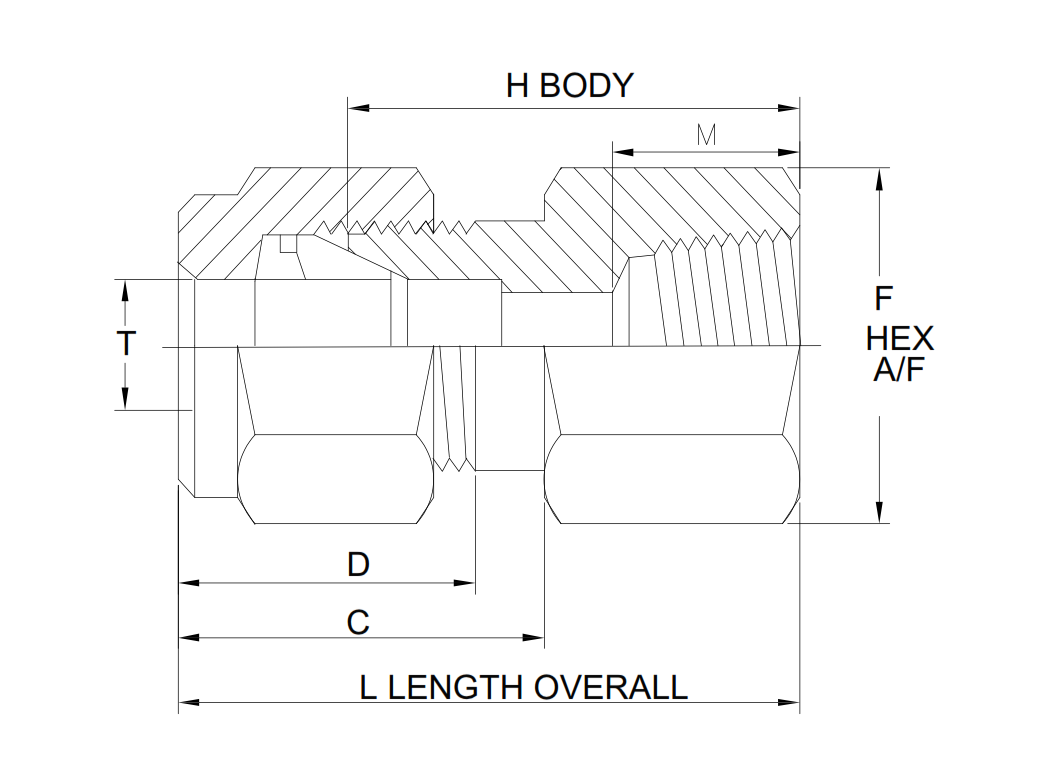

FEMALE CONNECTOR
Metric Tubes
|
Part No. |
Tube OD |
NPT Size |
Dimensions |
|||||
|
L |
M |
C |
D |
F |
H |
|||
|
2-N-FC-3M |
3 |
1/8 |
28.702 |
9.65 |
15.24 |
12.7 |
13.00 |
22.35 |
|
2-N-FC-3M |
1/4 |
33.528 |
14.99 |
15.24 |
12.7 |
19.00 |
26.92 |
|
|
2-N-FC-6M |
6 |
1/8 |
31.24 |
9.91 |
17.78 |
15.24 |
14.00 |
23.88 |
|
4-N-FC-6M |
1/4 |
35.81 |
14.99 |
17.78 |
15.24 |
19.00 |
28.45 |
|
|
6-N-FC-6M |
3/8 |
37.59 |
14.99 |
19.3 |
16.76 |
19.00 |
30.23 |
|
|
8-N-FC-6M |
1/2 |
43.18 |
19.81 |
17.78 |
15.24 |
27.00 |
35.81 |
|
|
4-N-FC-10M |
10 |
1/4 |
37.59 |
14.99 |
19.3 |
16.76 |
19.00 |
30.23 |
|
6-N-FC-10M |
3/8 |
39.12 |
14.99 |
19.3 |
16.76 |
22.00 |
31.75 |
|
|
8-N-FC-10M |
1/2 |
43.94 |
19.81 |
19.3 |
16.76 |
27.00 |
36.58 |
|
|
4-N-FC-12M |
12 |
1/4 |
41.91 |
14.99 |
17.78 |
15.24 |
22.00 |
30.23 |
|
6-N-FC-12M |
3/8 |
41.91 |
14.99 |
21.84 |
22.86 |
22.00 |
31.75 |
|
|
8-N-FC-12M |
1/2 |
46.74 |
19.81 |
21.84 |
22.86 |
27.00 |
36.58 |
|
|
8-N-FC-16M |
16 |
1/2 |
46.73 |
19.81 |
22.09 |
24.38 |
27.00 |
36.57 |
|
8-N-FC-20M |
20 |
1/2 |
47.9 |
19.81 |
22.00 |
26.00 |
30.00 |
37.80 |
|
12-N-FC-20M |
3/4 |
49.7 |
19.81 |
22.00 |
26.00 |
35.00 |
39.60 |
|
|
12-N-FC-22M |
22 |
3/4 |
49.78 |
19.81 |
22.09 |
18.28 |
27.00 |
39.62 |
|
12-N-FC-25M |
25 |
3/4 |
53.34 |
19.81 |
26.67 |
31.24 |
27.00 |
42.16 |
|
16-N-FC-25M |
1 |
62.23 |
25.01 |
26.67 |
31.24 |
35.00 |
50.03 |
|
