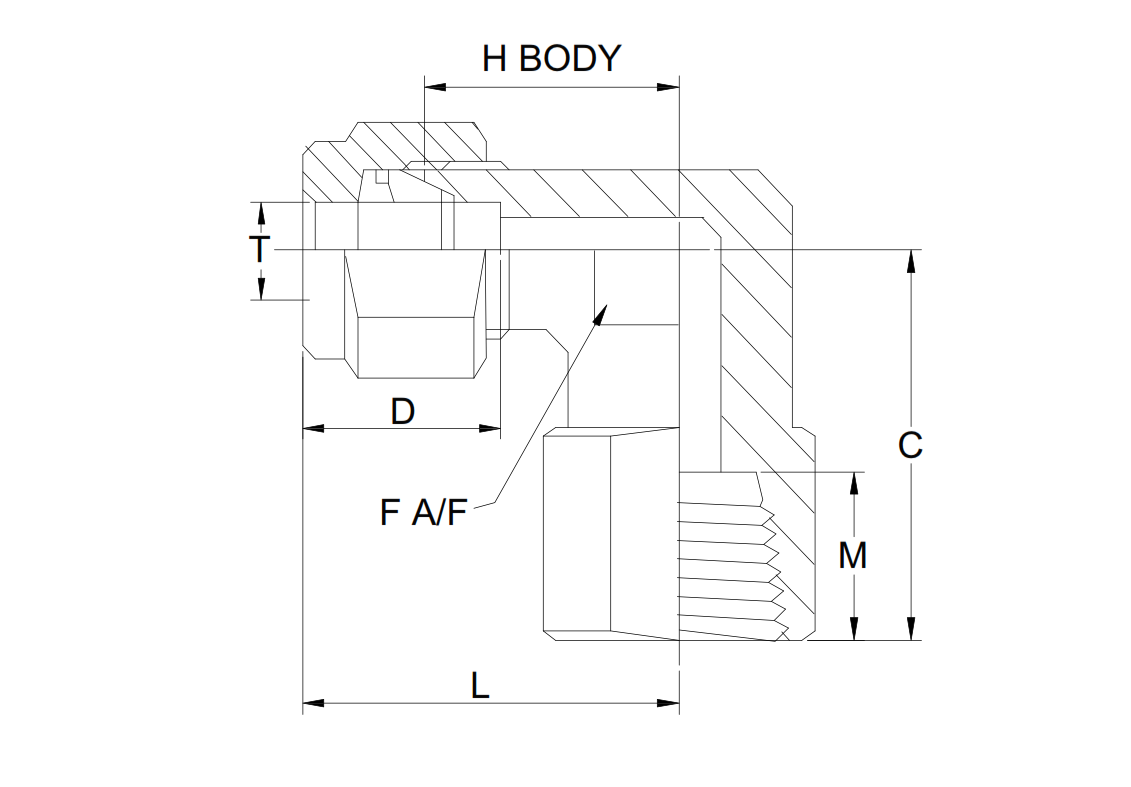

FEMALE ELBOW
Fractional Tubes
|
Part No. |
Tube OD |
NPT Size |
Dimensions |
|||||
|
L |
M |
C |
D |
F |
H |
|||
|
2-N-FE-2 |
1/8 |
1/8 |
0.97 |
0.39 |
0.53 |
0.50 |
7/16 |
0.71 |
|
4-N-FE-2 |
1/4 |
1.10 |
0.59 |
0.75 |
0.50 |
7/16 |
0.84 |
|
|
6-N-FE-4 |
1/4 |
3/8 |
1.25 |
0.59 |
0.88 |
0.60 |
1/2 |
0.96 |
|
8-N-FE-4 |
1/2 |
1.36 |
0.78 |
1.09 |
0.60 |
1/2 |
1.07 |
|
|
2-N-FE-6 |
3/8 |
1/8 |
1.20 |
0.39 |
0.75 |
0.66 |
5/8 |
0.91 |
|
4-N-FE-6 |
1/4 |
1.23 |
0.59 |
0.88 |
0.66 |
5/8 |
0.94 |
|
|
6-N-FE-6 |
3/8 |
1.32 |
0.59 |
0.88 |
0.66 |
5/8 |
1.03 |
|
|
8-N-FE-6 |
1/2 |
1.41 |
0.78 |
1.12 |
0.66 |
5/8 |
1.12 |
|
|
4-N-FE-8 |
1/2 |
1/4 |
1.38 |
0.59 |
0.88 |
0.90 |
13/16 |
0.98 |
|
4-N-FE-8 |
3/8 |
1.39 |
0.59 |
0.88 |
0.90 |
13/16 |
1.03 |
|
|
4-N-FE-8 |
1/2 |
1.52 |
0.78 |
1.12 |
0.90 |
13/16 |
1.12 |
|
|
6-N-FE-10 |
5/8 |
3/8 |
1.56 |
0.59 |
0.93 |
0.96 |
15/16 |
1.17 |
|
8-N-FE-10 |
1/2 |
1.56 |
0.78 |
1.12 |
0.96 |
15/16 |
1.17 |
|
|
8-N-FE-12 |
3/4 |
1/2 |
1.57 |
0.78 |
1.13 |
0.96 |
1 1/16 |
1.17 |
|
12-N-FE-12 |
3/4 |
1.76 |
0.78 |
1.25 |
0.96 |
1 1/16 |
1.36 |
|
|
12-N-FE-14 |
7/8 |
3/4 |
1.76 |
0.78 |
1.25 |
1.02 |
1 3/16 |
1.36 |
|
12-N-FE-16 |
1 |
3/4 |
1.93 |
0.78 |
1.25 |
1.23 |
1 3/8 |
1.45 |
|
16-N-FE-16 |
1 |
2.02 |
0.98 |
1.50 |
1.23 |
1 3/8 |
1.53 |
|
