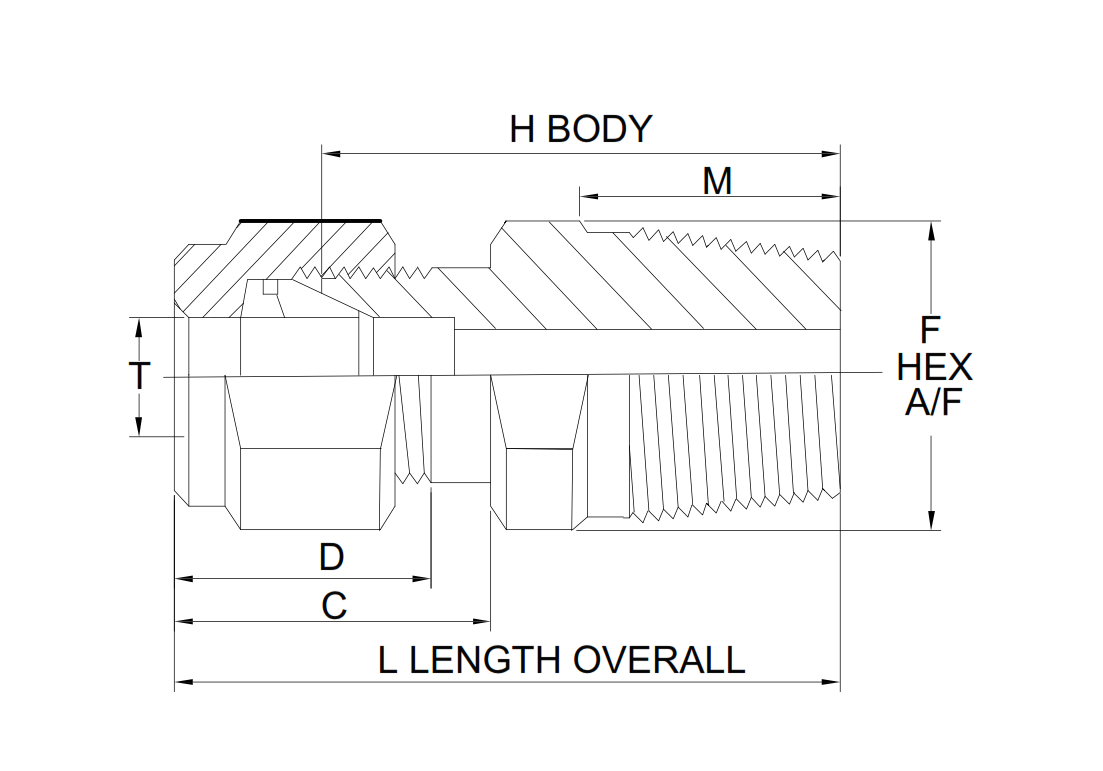

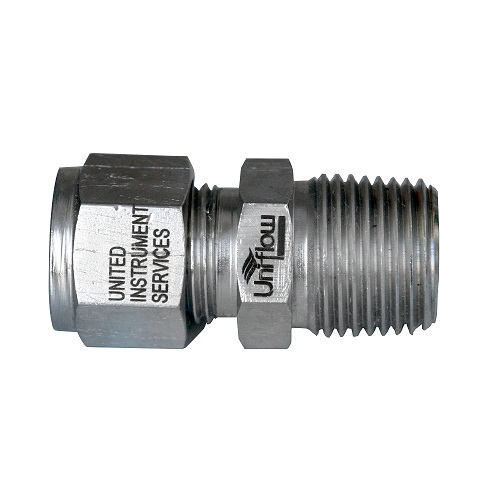

Male Connector
Metric Tube
|
Part No. |
Tube OD |
NPT Size |
Dimensions |
|||||
|
L |
M |
C |
D |
F |
H |
|||
|
2-N-MC-3M |
3 |
1/8 |
29.70 |
9.65 |
15.24 |
12.90 |
13.00 |
23.47 |
|
4-N-MC-3M |
1/4 |
35.56 |
14.22 |
15.24 |
12.70 |
14.00 |
28.04 |
|
|
2-N-MC-6M |
6 |
1/8 |
32.77 |
9.65 |
17.78 |
15.24 |
13.00 |
25.40 |
|
4-N-MC-6M |
1/4 |
38.10 |
14.22 |
18.29 |
16.00 |
14.00 |
30.23 |
|
|
6-N-MC-6M |
3/8 |
38.35 |
14.22 |
17.78 |
15.24 |
16.00 |
30.99 |
|
|
8-N-MC-6M |
1/2 |
43.94 |
19.05 |
17.78 |
15.24 |
22.00 |
36.58 |
|
|
2-N-MC-10M |
10 |
1/8 |
35.05 |
9.65 |
19.30 |
16.76 |
16.00 |
27.69 |
|
4-N-MC-10M |
1/4 |
39.88 |
14.22 |
19.30 |
16.76 |
16.00 |
32.51 |
|
|
6-N-MC-10M |
3/8 |
39.88 |
14.22 |
19.30 |
16.76 |
16.00 |
32.51 |
|
|
8-N-MC-10M |
1/2 |
45.47 |
19.05 |
19.30 |
16.76 |
22.00 |
38.10 |
|
|
2-N-MC-12M |
12 |
1/8 |
38.86 |
9.65 |
21.84 |
22.86 |
22.00 |
28.65 |
|
4-N-MC-12M |
1/4 |
43.43 |
14.22 |
21.84 |
22.86 |
22.00 |
33.27 |
|
|
6-N-MC-12M |
3/8 |
43.43 |
14.22 |
22.10 |
22.86 |
22.00 |
33.27 |
|
|
8-N-MC-12M |
1/2 |
48.26 |
19.05 |
21.84 |
22.86 |
22.00 |
38.00 |
|
|
12-N-MC-12M |
3/4 |
49.02 |
19.05 |
21.84 |
22.86 |
27.00 |
38.86 |
|
|
4-N-MC-14M |
14 |
1/4 |
44.10 |
14.22 |
22.00 |
24.40 |
24.00 |
34.10 |
|
6-N-MC-14M |
3/8 |
44.10 |
14.22 |
22.00 |
24.40 |
24.00 |
34.10 |
|
|
8-N-MC-14M |
1/2 |
49.00 |
19.05 |
22.00 |
24.40 |
24.00 |
38.90 |
|
|
8-N-MC-15M |
15 |
1/2 |
49.00 |
19.05 |
22.00 |
24.40 |
24.00 |
38.90 |
|
6-N-MC-16M |
16 |
3/8 |
44.20 |
14.22 |
22.09 |
24.38 |
24.00 |
34.03 |
|
8-N-MC-16M |
1/2 |
49.02 |
19.05 |
22.09 |
24.38 |
22.00 |
38.86 |
|
|
12-N-MC-16M |
3/4 |
50.55 |
19.05 |
22.09 |
24.38 |
27.00 |
40.38 |
|
|
8-N-MC-18M |
18 |
1/2 |
50.55 |
19.05 |
21.84 |
24.38 |
27.00 |
40.39 |
|
12-N-MC-18M |
3/4 |
50.55 |
19.05 |
21.84 |
24.38 |
27.00 |
40.39 |
|
|
12-N-MC-22M |
22 |
3/4 |
50.55 |
19.05 |
22.09 |
25.90 |
30.00 |
40.38 |
|
16-N-MC-22M |
1 |
57.91 |
23.87 |
22.09 |
25.90 |
35.00 |
47.75 |
|
|
8-N-MC-25M |
25 |
1/2 |
57.66 |
19.05 |
21.84 |
31.24 |
35.00 |
45.21 |
|
12-N-MC-25M |
3/4 |
57.66 |
19.05 |
26.67 |
31.24 |
35.00 |
45.21 |
|
|
16-N-MC-25M |
1 |
62.48 |
25.01 |
26.67 |
31.24 |
35.00 |
50.03 |
|
