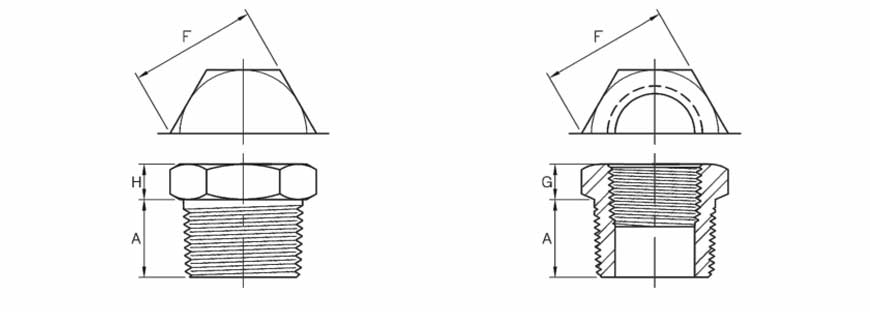

Hex Plugs and Bushings
| HEX Plugs and Bushings | ||||
|
Nominal Pipe Size
|
Min. Length,
A |
Hex Plugs and Bushings | ||
|
Nominal Width Flats,
E |
Min. Hex Height | |||
| Bushing, G |
Plug, H |
|||
| 1⁄8 | 10 | 11 | . . . | 6 |
| 1⁄4 | 11 | 16 | 3 | 6 |
| 3⁄8 | 13 | 18 | 4 | 8 |
| 1⁄2 | 14 | 22 | 5 | 8 |
| 3⁄4 | 16 | 27 | 6 | 10 |
| 1 | 19 | 36 | 6 | 10 |
| 11⁄4 | 21 | 46 | 7 | 14 |
| 11⁄2 | 21 | 50 | 8 | 16 |
| 2 | 22 | 65 | 9 | 18 |
| 21⁄2 | 27 | 75 | 10 | 19 |
| 3 | 28 | 90 | 10 | 21 |
| 4 | 32 | 115 | 13 | 25 |
GENERAL NOTE: Dimensions are in millimeters.
NOTES: (1) Cautionary Note Regarding Hex Bushings: Hex head bushings of one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressures.
NOTES: (1) Cautionary Note Regarding Hex Bushings: Hex head bushings of one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressures.
